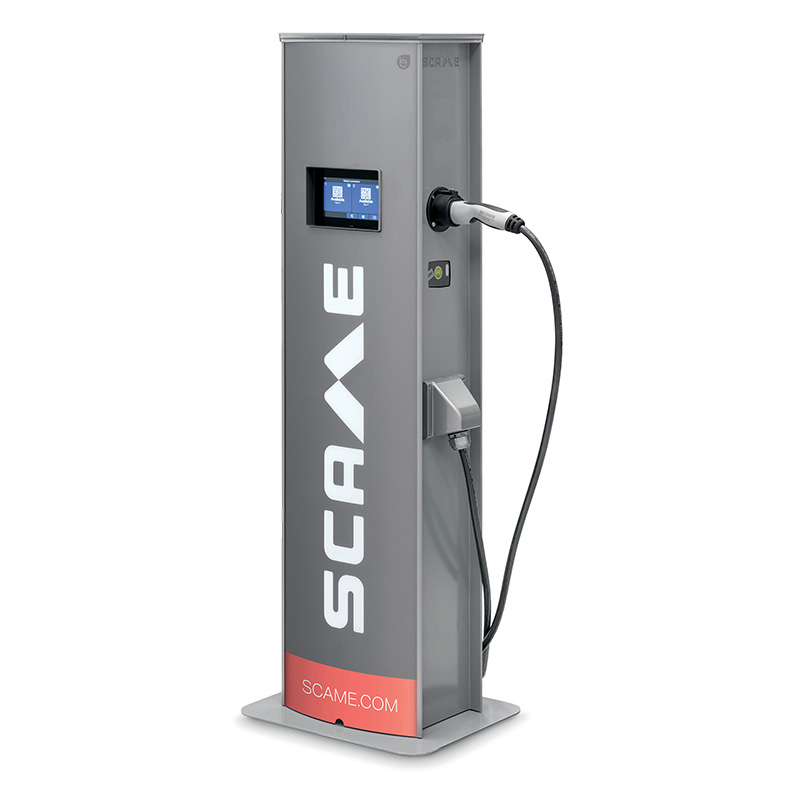

Pillar CA-CB 624156

Colour

• GREY (34)
• BRUSHED ALLUMINIUM (6)

Rated current

• 32A (20)
• 63A (15)
• 80A (3)
• 125A (1)
• 50A (1)

Synthetical description

• PILLAR CA 2 SOCKETS WITH LOCK (16)
• PILLAR CA 4 SOCKETS WITH LOCK (7)
• PILLAR CB 2 SOCKETS WITH LOCK (6)
• PILLAR CA 1 SOCKET WITH LOCK (4)
• PILLAR CA 2 CONNECTORS RFID (4)
• PILLAR CA 2 CONNECT. T2 RFID (3)

Dimensions

• 385x1510x263mm (34)
• 315x1507x250mm (6)

User authentication

• RFID authentication (40)

HMI (Human-Machine Interfaces)

• LCD 2x20 char (40)

EV standard

• Type 2 1P+N+E 32A 230V~ 7,4kW (18)
• Type 2 3P+N+E 32A 400V~ 22kW (17)
• Type 2 3P+N+E 16A 400V~ 11kW (3)
• Type 2 1P+N+E 16A 230V~ 3,7kW|Type 2 3P+N+E 32A 400V~ 22kW (1)
• Type 2 3P+N+E 63A 400V~ 44kW (1)

Protection degree IK

• IK10 (40)

Protection degree IP

• IP54 (40)

Commercial Series

• CA Series (34)
• CB Series (6)

Material

• VARNISHED METAL (34)
• AI (Stainless steel) (6)

Poles

• 3P+N+E (38)
• 1P+N+E (2)

Working temperature

• -30°C/+50°C (40)

Rated voltage

• 400V (38)
• 230V (2)

Mounting version

• ON TURRET (40)

Connectivity

• Ethernet (16)
• None (12)
• Ethernet|WiFi|GSM (11)

Version

• PRO (24)
• BUSINESS (10)

Cable length

• 3m (8)

Cable section

• 5G6+1x0,5mm² (4)
• 3G6+1x0,5mm² (3)
• 5G10+1x0,5mm² (1)
